Description/Notes
More Details
General Information
General Information
| Color: | White / Black / Darkgrey |
| Size: | S |
| Mileage: | 1023 km |
| Scope of Delivery: | inkl. Ladegerät |
| Brand: | Raymon |

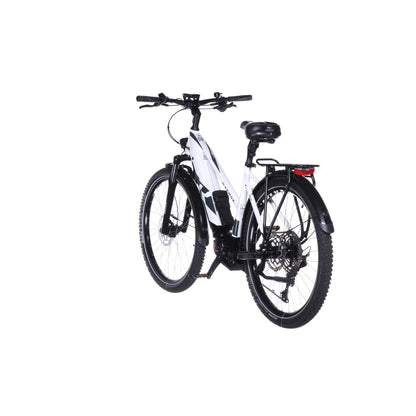

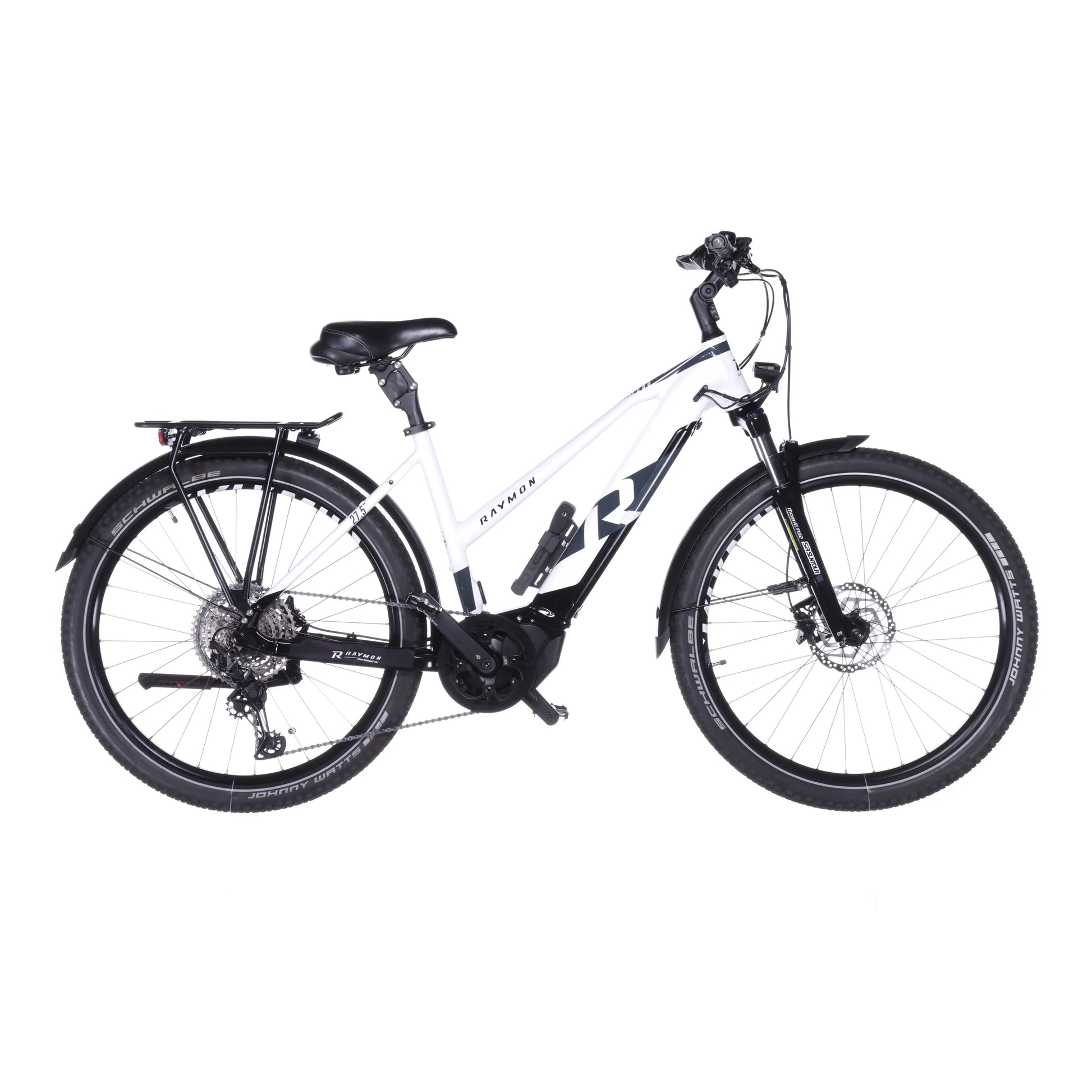

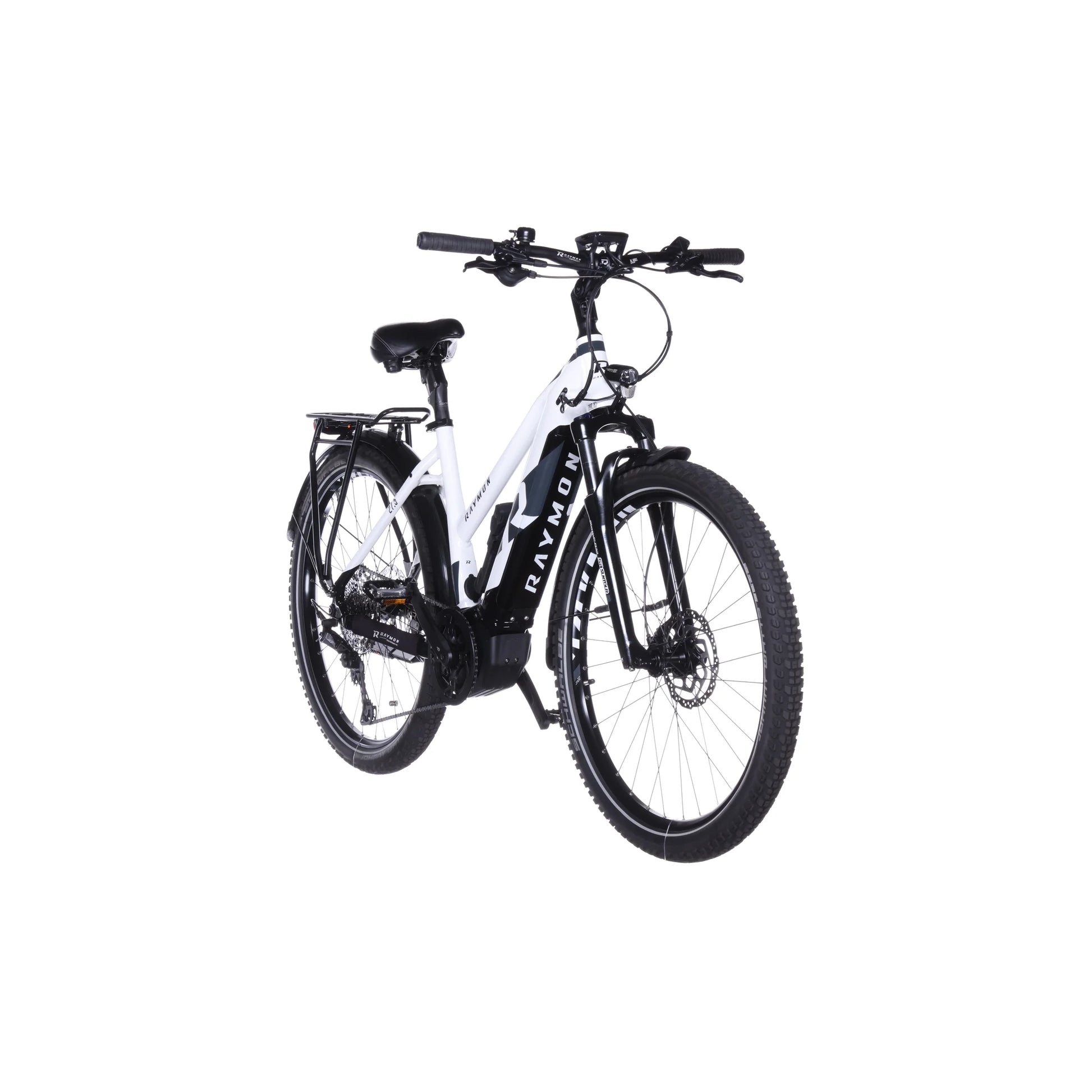

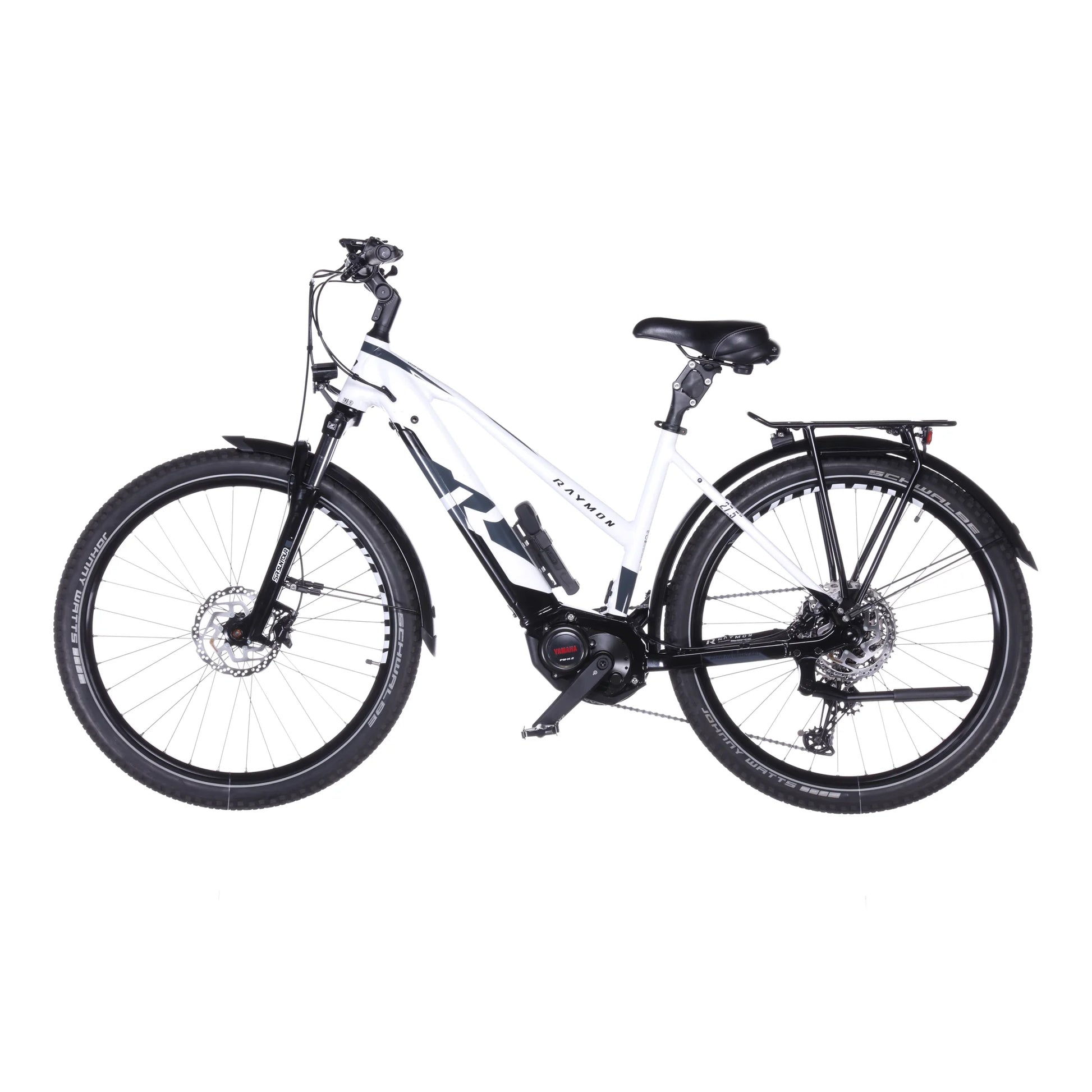

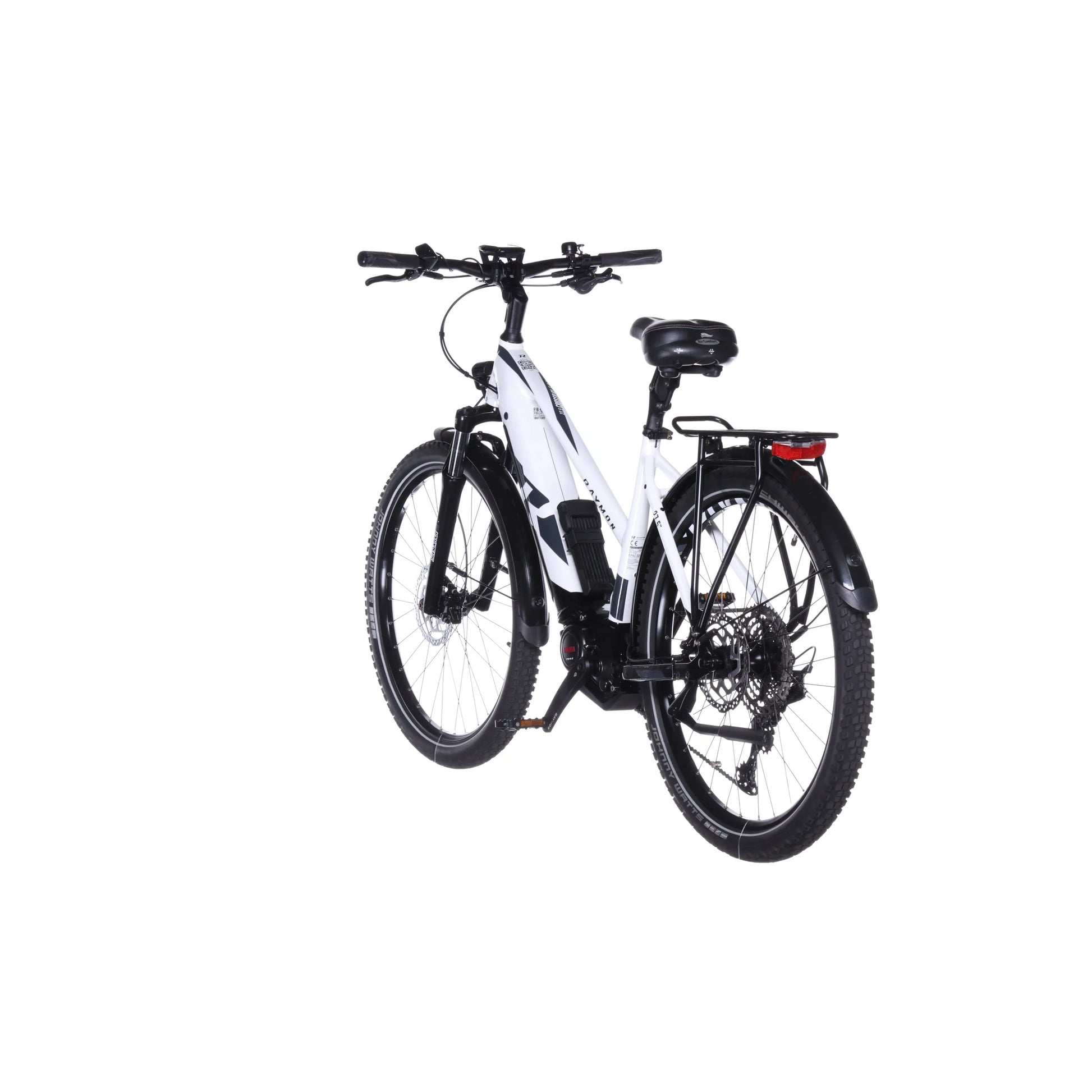

| Model: | CrossRay E 8.0 Lady |
| Model Year: | 2021 |
| Bike Status: | Refurbished |
Technical Details
Technical Details
| Battery position: | Integriert |
| Maximum Speed: | 25 |
| Wheel Size: | 27.5 |
| Engine type: | Mittelmotor |
| Bike Weight: | 27.00 |
| Frame Size: | 48 |
| Walk Assist Mode: | true |
| Maximum Authorized Weight: | 130 |
Equipment and Components
Equipment and Components
| Battery: | 630 Wh |
| Battery Charger: | Yamaha |
| Brakes: | Shimano BR-MT410, hydr. Disc |
| Brake Disc: | Shimano SM-RT30, 180mm, Centerlock |
| Shock Absorber: | - |
| Display: | Yamaha Display C, TFT, BT-LE |
| Rims: | Mach1-Trucky30, Eyelets, Tubeless |
| Fork: | SR Suntour Mobie-A32 LO, 75mm, Tapered |
| Fork Travel: | 75 mm |
| Luggage Rack: | R Raymon Tour, MIK-System |
| Chain: | KMC e12S |
| Crank: | R Raymon, Narrow Wide, Bashguard, 44T |
| Handlebar: | R Raymon 31.8, 700mm, Sweep: 9°, Rise: 15mm |
| Rear Light: | Axa Blueline E |
| Front Light: | Litemove HKSE-70, 70 Lux |
| Engine: | Yamaha PW-X2, 250W, 80Nm |
| Hubs: | v: R Raymon DA210F, Centerlock, 15x100mm, h: R Raymon DA210R, Centerlock, 12x148mm |
| Frame: | Alloy 6061, Trekking, Integrated Battery, 12x148mm |
| Frame Material: | Aluminium |
| Tires: | Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35 |
| Saddle: | Air Comfort |
| Seat Post: | R Raymon 30.9, Patent, 350mm |
| Shifter: | Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed |
| Gear Speeds: | 12 |
| Gear Ratio: | front: 44T, rear: 10-51T |
| Rear Derailleur: | Shimano Deore XT, RD-M8100, Shadow Plus, 12-speed |
| Mudguards: | Eurofender Tempo 65 |
| Kickstand: | Ursus MOOI KSA40, adjustable |
Frame Sizes
Frame Sizes
The frame sizes listed in the table are recommendations based on body height. Please note that the optimal frame size also depends on individual factors such as your body proportions and personal preferences.
| City Bikes | Trekking Bikes | MTBs | |
| S | 155–166 cm | 155–166 cm | 155–169 cm |
| M | 164–180 cm | 164–180 cm | 167–180 cm |
| L | 178–191 cm | 178–191 cm | 175–190 cm |
| XL | 186–200 cm | 186–200 cm | 186–200 cm |
Equipment and mileage may vary.
Frame Sizes
The frame sizes listed in the table are recommendations based on body height. Please note that the optimal frame size also depends on individual factors such as your body proportions and personal preferences.
| City Bikes | Trekking Bikes | MTBs | |
| S | 155–166 cm | 155–166 cm | 155–169 cm |
| M | 164–180 cm | 164–180 cm | 167–180 cm |
| L | 178–191 cm | 178–191 cm | 175–190 cm |
| XL | 186–200 cm | 186–200 cm | 186–200 cm |
State:
All of our used bikes are fully serviced by our mechanics in our specialist workshop.
