Description/Notes

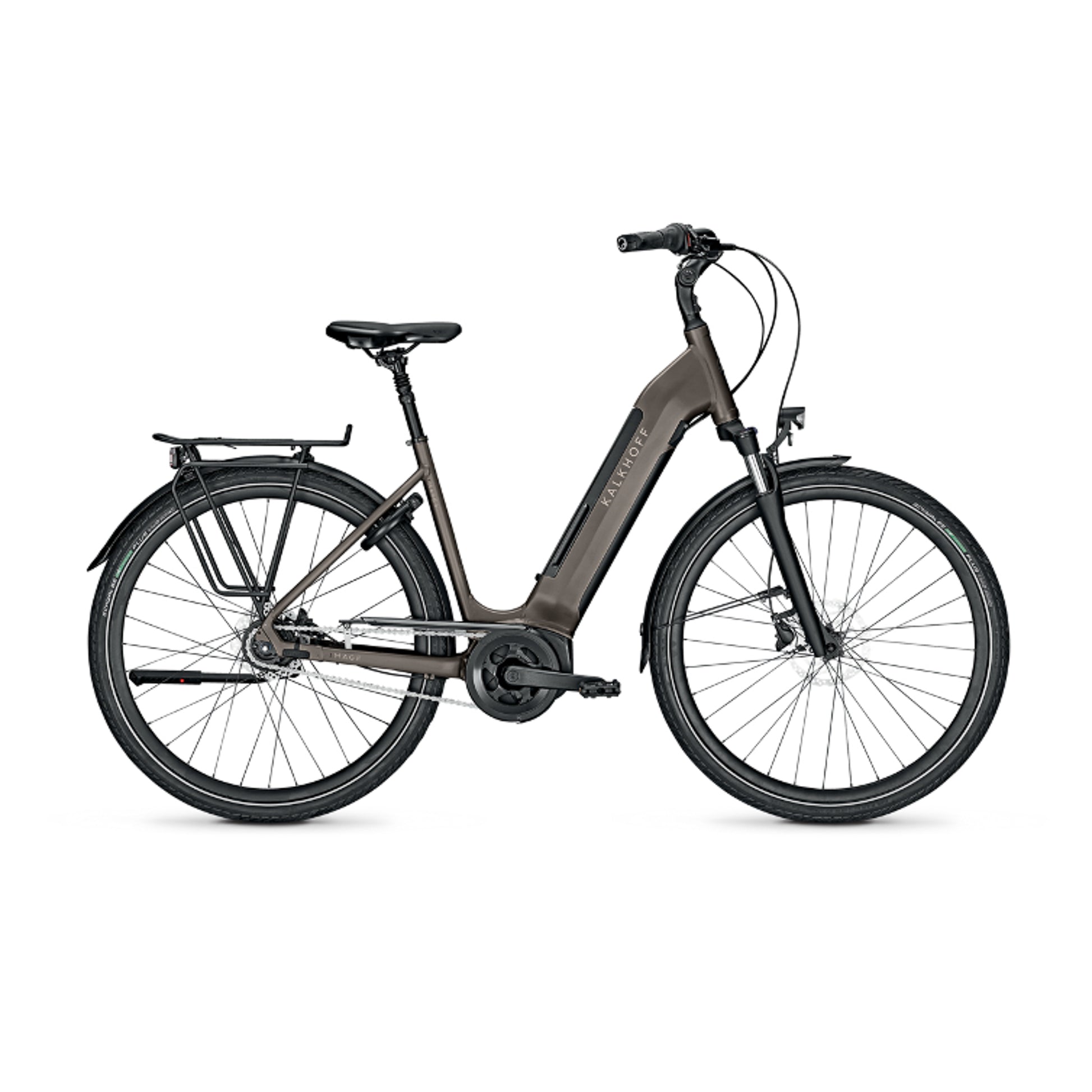

The IMAGE 3.B is a versatile e-bike ideal for everyday use, commuters, and leisure riders. It combines a comfortable ride with practical features and modern e-drive technology. The powerful Bosch motors and the long-lasting Bosch frame batteries integrated into the frame ensure that you can easily tackle even longer distances or climbs. Thoughtful details such as the push assist, luggage rack, and ergonomic handles increase riding comfort and make this city e-bike a true luxury vehicle for everyday use.More Details
General Information
General Information
Color: | grey |
Size: | M |
Mileage: | 4904 km |
Scope of Delivery: | including charger and instruction manual |
Brand: | Kalkhoff |
Model: | IMAGE 3.B MOVE |
Model Year: | 2023 |
Bike Status: | Refurbished |
Technical Details
Technical Details
Battery position: | integrated |
Maximum Speed: | 25 |
Wheel Size: | 28 inches |
Engine type: | mid engine |
Bike Weight: | 26.00 |
Frame Size: | 48 |
Range: | 140 |
Walk Assist Mode: | true |
Maximum Authorized Weight: | 130 |
Equipment and Components
Equipment and Components
Battery: | 500 Wh |
Battery Charger: | Original Bosch charger |
Brakes: | Shimano MT200, 2-piston, hydraulic disc brakes |
Brake Disc: | 180 mm | 160 mm |
Display: | Bosch Purion |
Rims: | High profile, hollow chamber, eyeleted, aluminum |
Fork: | SR Suntour NEX E25 HLO |
Fork Travel: | 63 mm |
Luggage Rack: | Racktime Snap-It |
Chain: | KMC Z1 EPT |
Crank: | aluminum |
Handlebar: | City Comfort, aluminum |
Rear Light: | Herrmans H-Trace, LED |
Front Light: | Herrmans MR GO, LED, 20 Lux |
Engine: | Bosch Active Line Plus / 50 Nm |
Hubs: | Shimano TX505, with quick release | Shimano Nexus, 8-speed |
Frame: | Wave - Integrals 0.1 |
Frame Material: | aluminum |
Tires: | Schwalbe Energizer Plus Performance, 50-622 |
Saddle: | Selle Royal Nuvola Unitec |
Shifter: | Shimano Nexus |
Gear Speeds: | 8 gears |
Gear Ratio: | 38 | 19 |
Rear Derailleur: | 8-speed Shimano Nexus |
Lock: | frame lock |
Mudguards: | Plastic with edge protection |
Kickstand: | Rear stand adjustable |
Frame Sizes
Frame Sizes
The frame sizes listed in the table are recommendations based on body height. Please note that the optimal frame size also depends on individual factors such as your body proportions and personal preferences.
City Bikes | Trekking Bikes | MTBs | |
S | 155–166 cm | 155–166 cm | 155–169 cm |
M | 164–180 cm | 164–180 cm | 167–180 cm |
L | 178–191 cm | 178–191 cm | 175–190 cm |
XL | 186–200 cm | 186–200 cm | 186–200 cm |
Equipment and mileage may vary.
Frame Sizes
The frame sizes listed in the table are recommendations based on body height. Please note that the optimal frame size also depends on individual factors such as your body proportions and personal preferences.
City Bikes | Trekking Bikes | MTBs | |
S | 155–166 cm | 155–166 cm | 155–169 cm |
M | 164–180 cm | 164–180 cm | 167–180 cm |
L | 178–191 cm | 178–191 cm | 175–190 cm |
XL | 186–200 cm | 186–200 cm | 186–200 cm |
State:
All of our used bikes are fully serviced by our mechanics in our specialist workshop.
